AgNi
Silver-nickel contact
Silver-nickel is a common combination for stable conductivity, controlled wear and reliable switching in relays, control equipment and electrical appliances.
Technical informationProducts
The perfect alloy for any switching application.
From high-conductivity silver to arc-resistant AgSnO₂, contacts and parts are selected and produced according to the load, geometry and working conditions.
01 / ProductsConfigure your contact rivet.
Select the form, size and production quantity and see the initial price with the live rate.
Start product selection Products showcase / 02Compare available models.
27 technical combinations in different forms, sizes and alloys.
Enter the showcaseMain families
Contact solutions from low energy circuit to power load.
The products can be checked as monometallic, bimetallic or trimetallic and according to the drawing. Comparison of the structure of rivets
AgSnO₂
Silver-tin oxide contact
Silver-tin oxide is considered for applications where resistance to welding and arc erosion at higher loads is important.
Technical information
AgCdO
Silver-cadmium oxide contact
AgCdO is used in some older stabilized designs because of its wear resistance and known switching behavior; Legal and environmental constraints of the project should be checked before selection.
Technical information
Ag · Ag/Cu · Ag/CuNi
Silver and composite contact
Pure silver and composite structures are used for low-energy circuits and compact equipment where high conductivity and precise contact surface control are important.
Technical information

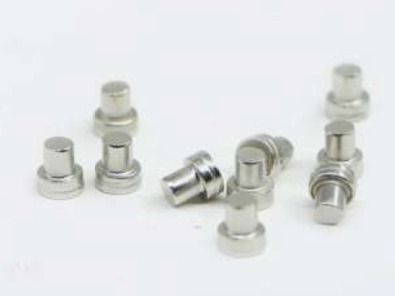

AgCu
Silver-copper contact
The addition of copper to silver can increase the hardness and mechanical strength while maintaining an appropriate level of conductivity for the selected application.
Technical information
Rivet · Terminal · Pressing piece
Custom metal parts
Metal parts and contact assemblies are manufactured to customer drawings for special geometries, alloys and connection methods.
Technical informationBasic guide
Start the selection from the electrical task.
No fixed current ceiling is valid without knowing the load, voltage, geometry and mechanism; This table only shows the axis of comparison.
| Alloy family | A common strength | A subject to be tested |
|---|---|---|
| Ag / FAg | High conductivity and low energy circuit | Surface film, contact force and wear |
| AgNi | Balance of conductivity, wear and manufacturability | Load type, metal transfer and inrush current |
| AgSnO₂ | Resistance to welding and arcing | Contact resistance, geometry and thermal path |
| AgCdO | Fixed designs and replacement parts | Alloy limitation, regulations and revalidation |
| AgCu | Harder than pure silver | Copper percentage, load type and behavior in DC |
| AgW / AgWC | Severe arcing and protective applications | Connection method, contact pressure and alloy brittleness |
Do you need a review to choose an alloy?
